Pioneer® Quantum Ultra™ 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Powerful, Discreet Comfort for Modern Spaces

Upgrade your home or commercial space with the Pioneer® Quantum Ultra™ 9,500 BTU Ceiling Concealed Ducted Mini-Split System—engineered for high-efficiency cooling and heating, ultra-quiet operation, and seamless integration into your ceiling for a clean, minimalist look. Designed for hidden ducted installation, this system delivers powerful airflow without visible indoor units, making it ideal for residential, office, or retail applications.

With a 19.6 SEER2 rating, advanced inverter heat pump technology, and 230V performance, this all-in-one full set offers year-round climate control while reducing energy costs.

Summary at a Glance

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 9,500 BTU/H with 19.6 SEER2 / 12 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Key Features & Benefits

9,500 BTU Cooling & Heating Capacity

Perfect for small to medium-sized rooms, ensuring fast, consistent temperature control.

High Efficiency – 19.6 SEER2

Save on electricity bills with energy-efficient inverter technology that adjusts output based on demand.

Concealed Ducted Design

Enjoy invisible comfort—unit is installed in the ceiling, distributing air through ducts for a clean, modern aesthetic.

Inverter Heat Pump Technology

Provides both cooling and heating, making it ideal for year-round use.

Ultra-Quiet Operation

Designed for low noise levels, perfect for bedrooms, offices, and commercial spaces.

230V Power Supply

Reliable performance for residential and light commercial installations.

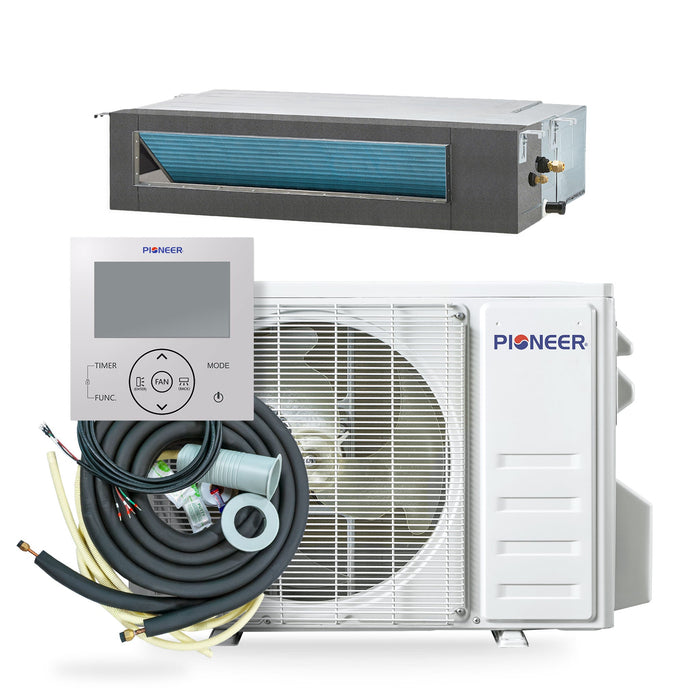

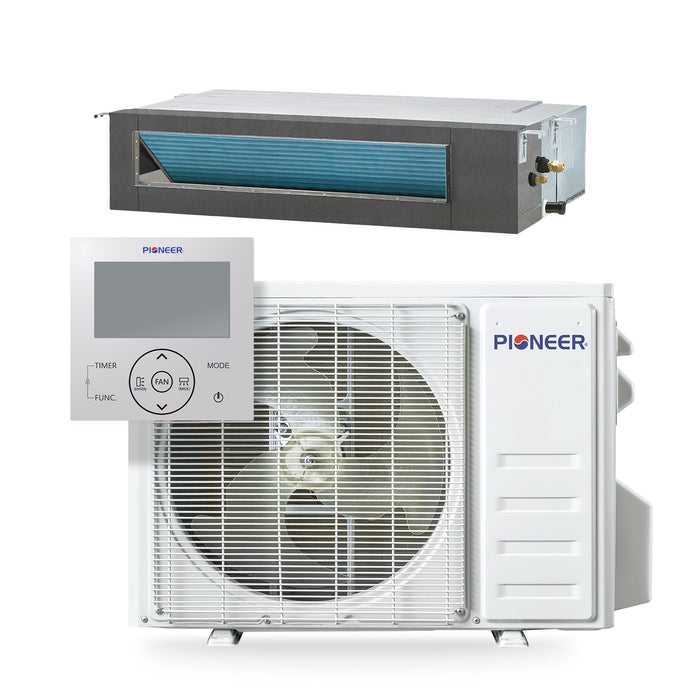

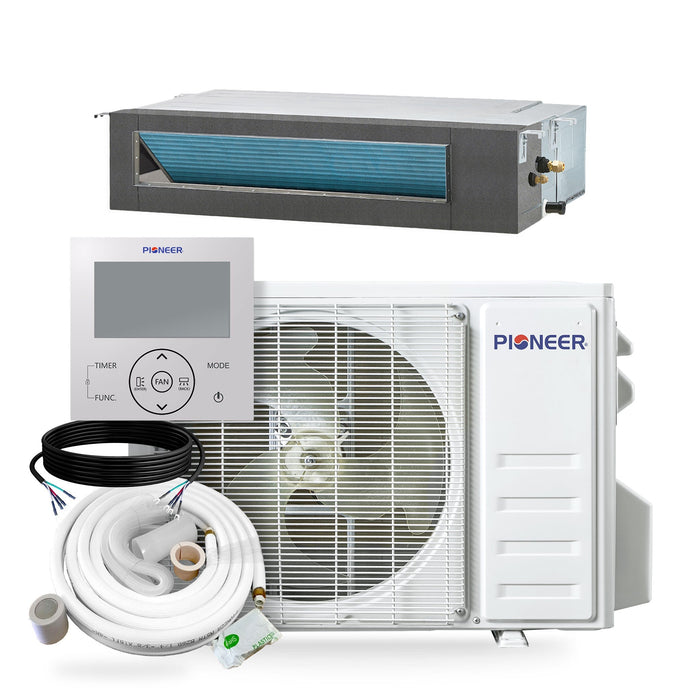

Complete Full Set Included

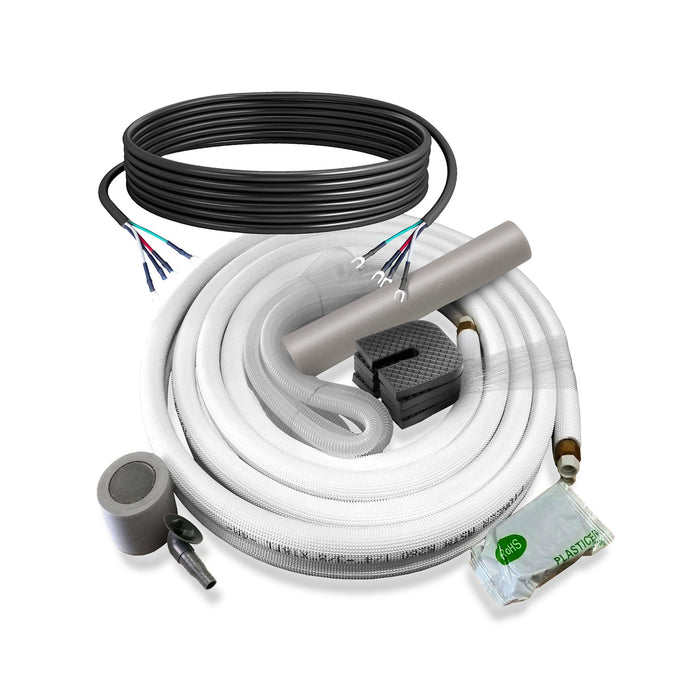

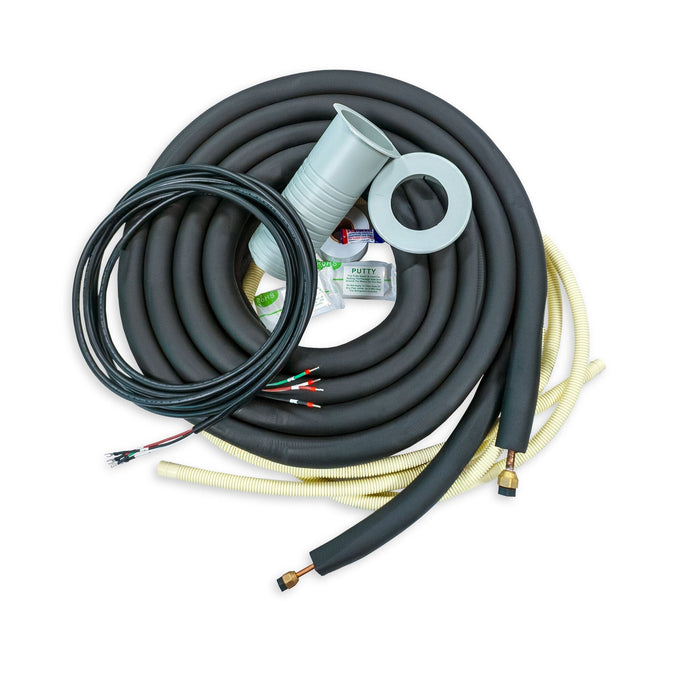

Comes with an indoor unit, outdoor condenser, and essential installation components for convenience.

Why Choose the Pioneer Quantum Ultra™ Series?

• Energy Savings: Reduce monthly utility costs with advanced inverter efficiency
• Space-Saving Design: No bulky wall units—ideal for modern interiors
• Professional-Grade Performance: Built for durability and consistent airflow
• Flexible Installation: Works with duct systems for multi-room distribution
• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

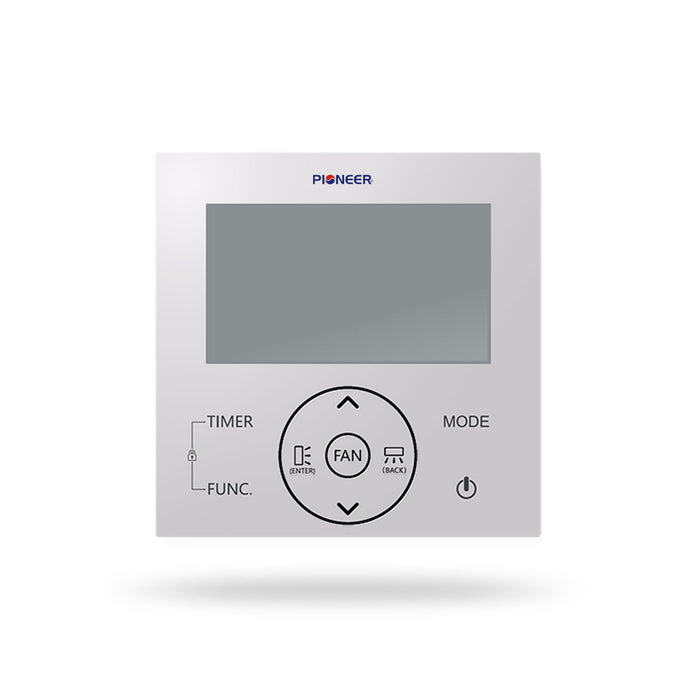

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Perfect For:

• Homes with modern or minimalist interior designs
• Offices and commercial spaces needing discreet HVAC solutions
• Renovations requiring hidden ceiling-mounted air conditioning
• Buyers searching for energy-efficient ducted mini split systems

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 19.6 BTU/W.h
  • Cooling EER2: 12.0 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,300 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.5 / 1.85 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 250~350 sq ft
  • AHRI Reference: 217048762

• Indoor Unit

  • Part Number: RT009GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 335 / 305 / 276 / 182 / 182 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
  • Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
  • Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
  • Net / Gross Weight: 33.1 / 40.8 lbs

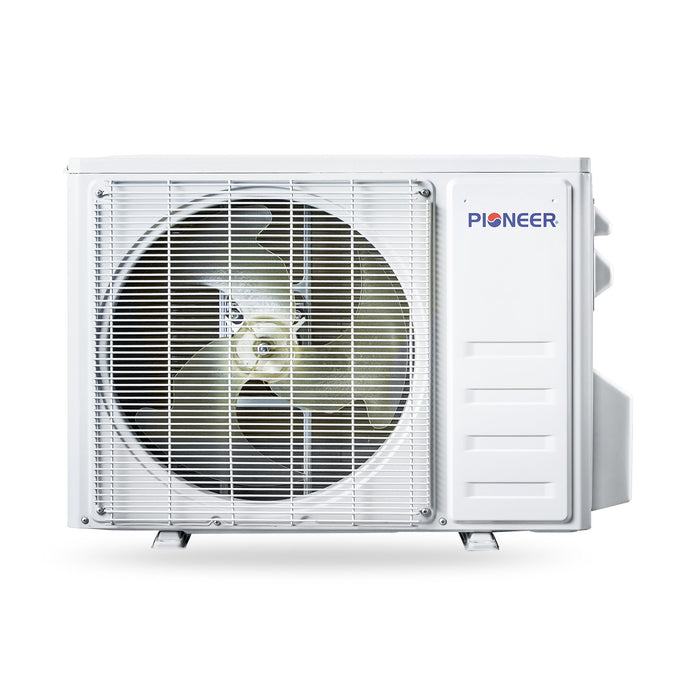

• Outdoor Unit

  • Part Number: YN009GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 50 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 52.7 / 57.1 lbs

Experience Hidden Comfort & Energy Savings

Transform your space with the Pioneer® Quantum Ultra™ Concealed Ducted Mini-Split System—the perfect combination of performance, efficiency, and invisible design.

Dimension Chart
