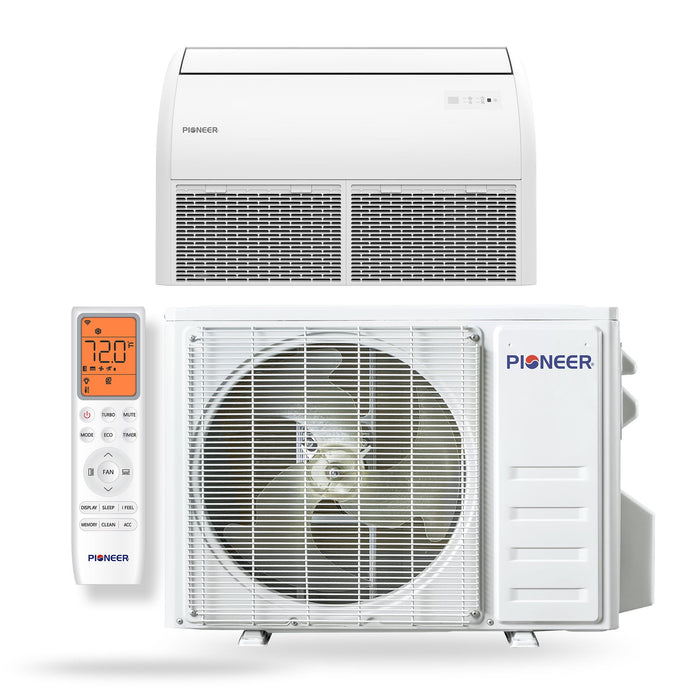

Pioneer® Quantum Ultra™ 22,200 BTU 20 SEER2 Floor/Ceiling/Low-Wall Ductless Mini-Split Inverter Heat Pump (230V) – Full Set

Upgrade your comfort with the Pioneer® Quantum Ultra™ 22,200 BTU Ductless Mini-Split System—a powerful, energy-efficient solution designed for year-round heating and cooling. Built with advanced inverter technology and flexible installation options, this system is perfect for homes, offices, retail spaces, and light commercial applications where traditional HVAC systems fall short.

Whether you're looking to buy a high-efficiency mini split air conditioner, replace an outdated HVAC system, or install a ductless heat pump, this all-in-one full set delivers premium performance, cost savings, and installation flexibility.

Summary at a Glance

• High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
• Cooling capacity: 22,200 BTU/H with 20 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.44 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Key Benefits & Features

Powerful 22,200 BTU Cooling & Heating

• Ideal for medium to large rooms
• Efficiently cools in summer and heats in winter
• Perfect for living rooms, offices, apartments, and commercial spaces

High-Efficiency 20 SEER2 Rating

• Save more on electricity bills with energy-efficient inverter technology
• Meets modern efficiency standards for eco-conscious buyers
• Great choice for those searching for low energy mini split systems

Multi-Position Installation (Floor/Ceiling/Low-Wall)

• Install on the floor, ceiling, or low wall for maximum flexibility
• Perfect for spaces with limited wall clearance or unique layouts
• Ideal for retrofits and renovations

Inverter Heat Pump Technology

• Maintains consistent indoor temperatures
• Faster cooling and heating with less energy consumption
• Whisper-quiet operation for bedrooms and offices

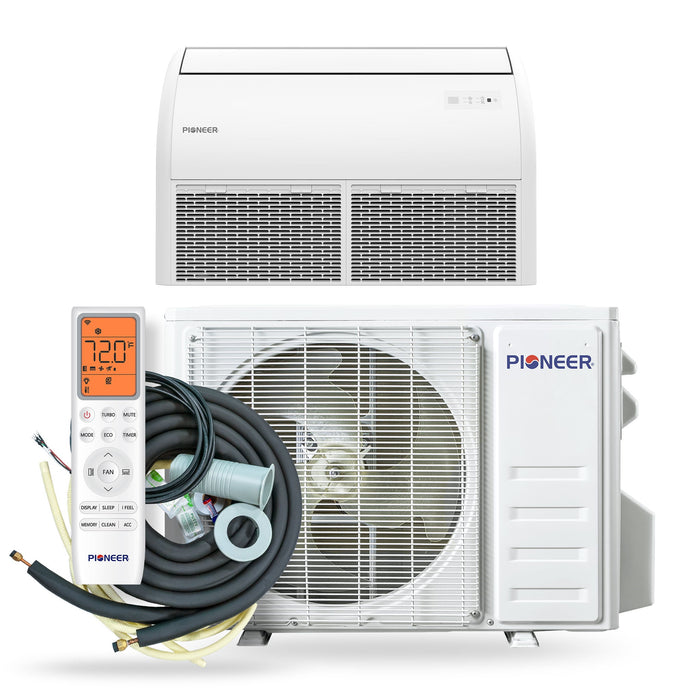

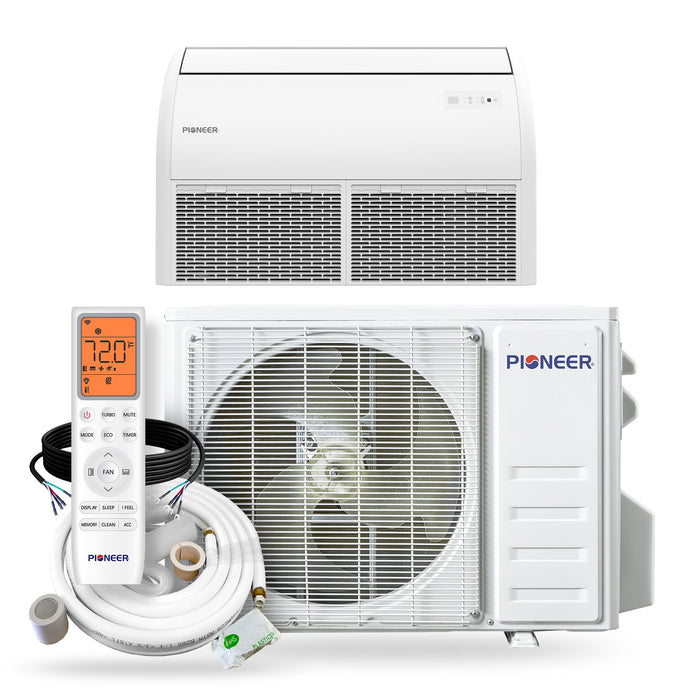

Complete Full Set Included

• Indoor unit + outdoor condenser
• Remote control

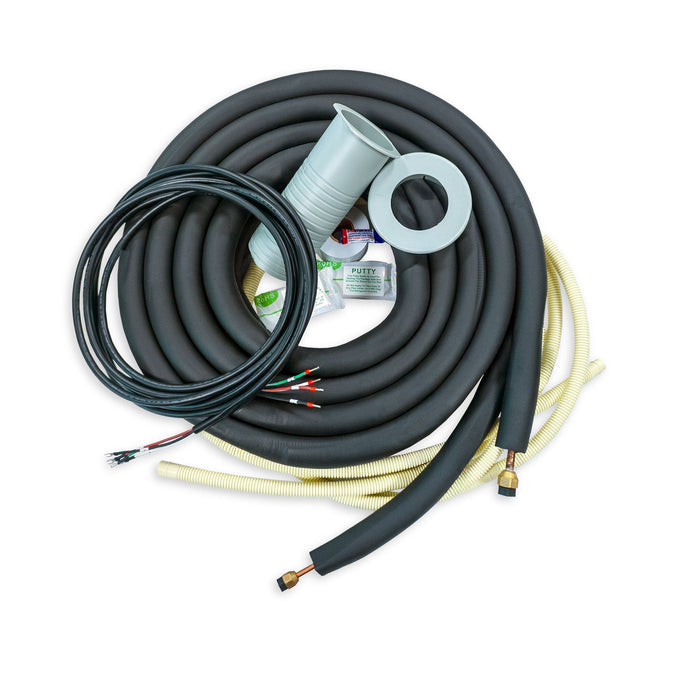

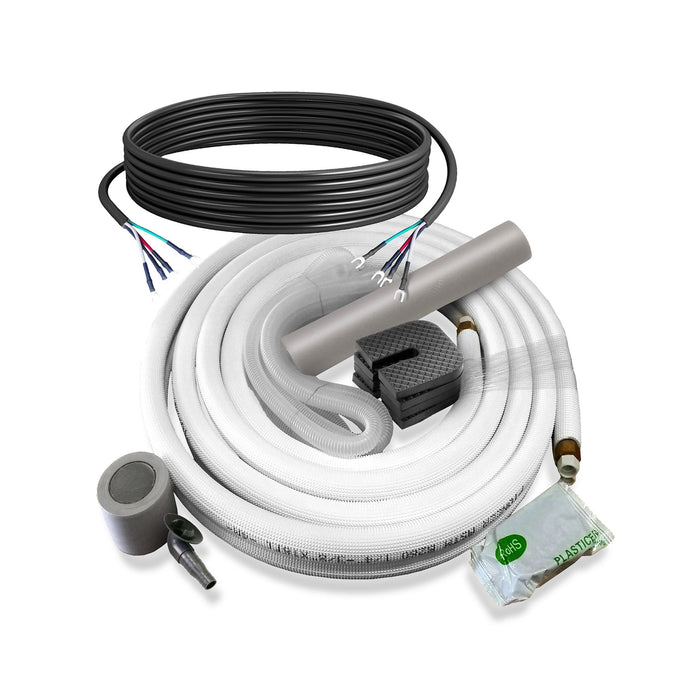

• Installation kit (varies by package)
• Ready for professional installation

Ultra-Quiet Performance

• Designed for low noise operation
• Perfect for sleeping areas, study rooms, and workspaces

Why Choose This Ductless Mini Split System?

• No ductwork required – perfect for older homes or new additions
• Lower installation cost compared to central HVAC systems
• Zoned comfort control for personalized temperature settings
• Reliable performance in both cooling and heating modes
• Trusted Pioneer® quality and durability
• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

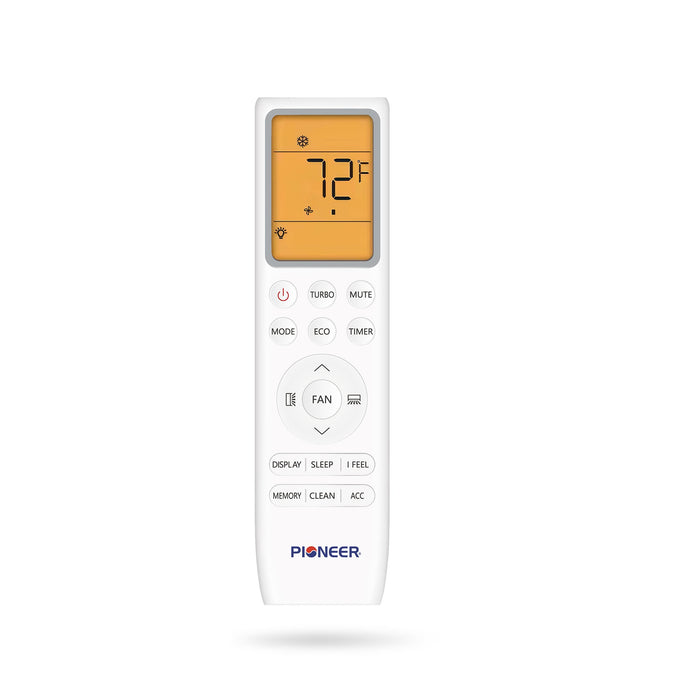

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 22,200 BTU/h
  • Cooling Capacity Range: 6,010~24,610 BTU/h
  • Cooling SEER2: 20.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 24,400 BTU/h
  • Heating Capacity Range: 4,750~28,640 BTU/h
  • Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.44 / 2.0 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 750~1,000 sq ft
  • AHRI Reference: 217048767

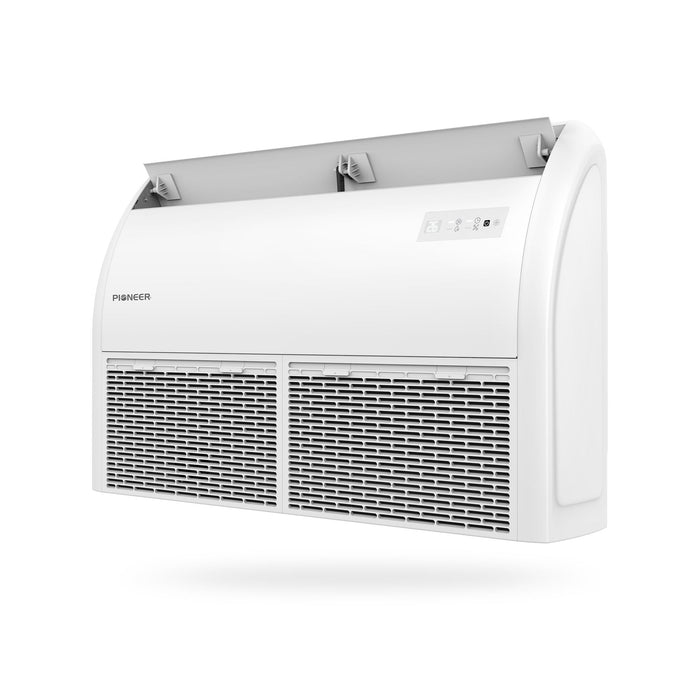

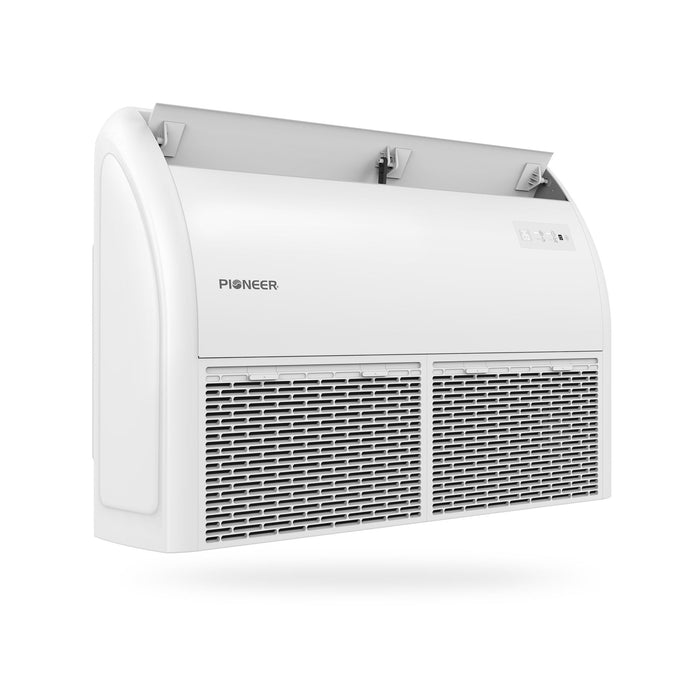

• Indoor Unit

  • Part Number: UT024GLSILSFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 647 / 588 / 517 / 470 / 412 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 53 / 52 / 48 / 44 / 40 dB(A)
  • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
  • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
  • Net / Gross Weight: 57.3 / 68.3 lbs

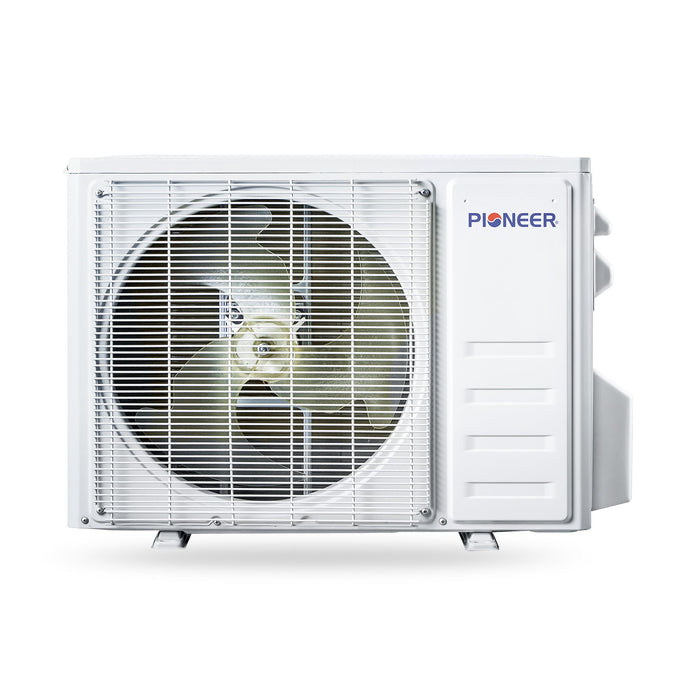

• Outdoor Unit

  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 104.7 / 119.0 lbs

Take Control of Your Comfort Today

Invest in a high-performance ductless mini split system that delivers powerful cooling, efficient heating, and flexible installation—all in one package. The Pioneer® Quantum Ultra™ is built for comfort, savings, and long-term reliability. Experience energy-efficient climate control like never before!

Dimension Chart
