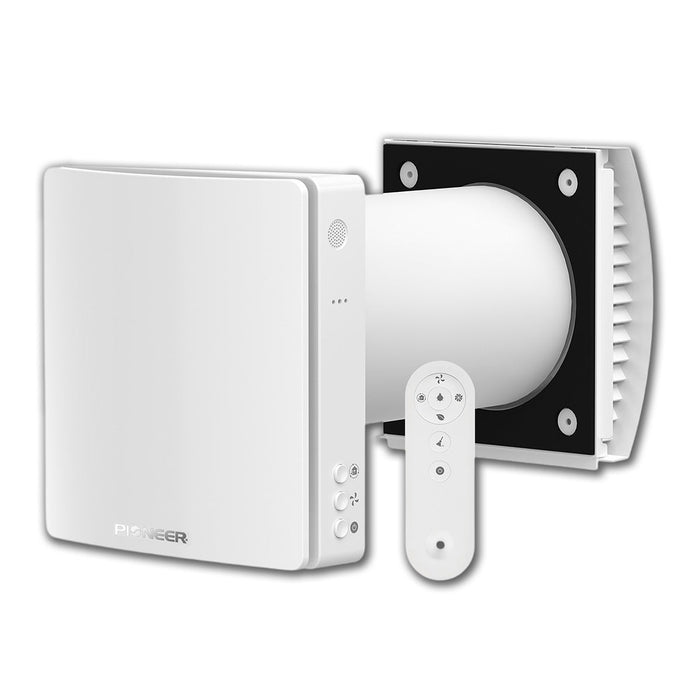

Pioneer® ECOasis 50 Ductless Wall-Mounted Single-Room Wi-Fi Energy Recovery Ventilator
Breathe Smarter. Live Healthier. Upgrade Your Indoor Air Quality Today.
Transform your home or workspace with the Pioneer® ECOasis 50 Ductless Energy Recovery Ventilator (ERV)—a powerful, energy-efficient solution designed to deliver fresh, filtered air without sacrificing comfort or increasing energy costs. Perfect for single-room applications, this Wi-Fi-enabled wall-mounted ERV system ensures optimal ventilation while maintaining indoor temperature balance year-round.
With its compact design and highly integrated appearance, Pioneer®'s wall-mounted Energy Recovery Ventilator (ERV-50) system offers the most energy-efficient way of renewing the air inside your home. This lightweight system neatly recesses within the wall and intelligently exchanges stale indoor room air with fresh, clean outside air - all the while filtering out and reducing unhealthy indoor air contaminants. Not only that, but the internal high-tech ceramic energy accumulator housed within also offers a heat recovery efficiency of up to 97% - ensuring that the comfortable room temperature inside is neither raised nor lowered by the temperature of the air outside which could be wildly different.
Easily installed and operated, the 50 Series ERV reliably ensures year-round elimination of air pollutants and impurities, while delivering optimum indoor air quality. Breathe life into your home with delightfully crisp, fresh air today!
- Ultra High Efficiency ECOasis™ ERV-rm Series Ductless Energy Recovery Ventilation System with 97% Heat Recovery
- Minimal Energy Consumption with an Average Power draw of only 8W
- Wall-Mounted with Variable Length Air Channel Duct to Suit Different Wall Thicknesses
- Large Volume Air Output with Up to 35 CFM of Treated Airflow
- Washable & Re-usable Integrated Prefilters, along with F7 (MERV13) Filter
- Wi-Fi Controlled via Free Smartphone App (along with Standard Controller)
- Rainproof Design with Hooded and Angled Outdoor Cover
- Super-Silent Operation with a Maximum Sound Output of 32.7 dB(A)
Features and Benefits:
-
Remove Room Air Pollutants: Filtration of air impurities such as MVOCs (Microbial Volatile Organic Compounds) along with removal of dust and other contaminants that commonly cause coughing, fatigue, and allergy aggravation
-
Freshen and Renew Breathing Air: Extraction of stale and stuffy room air while simultaneously introducing fresh outdoor air into the room to improve oxygen levels and overall quality of life
-

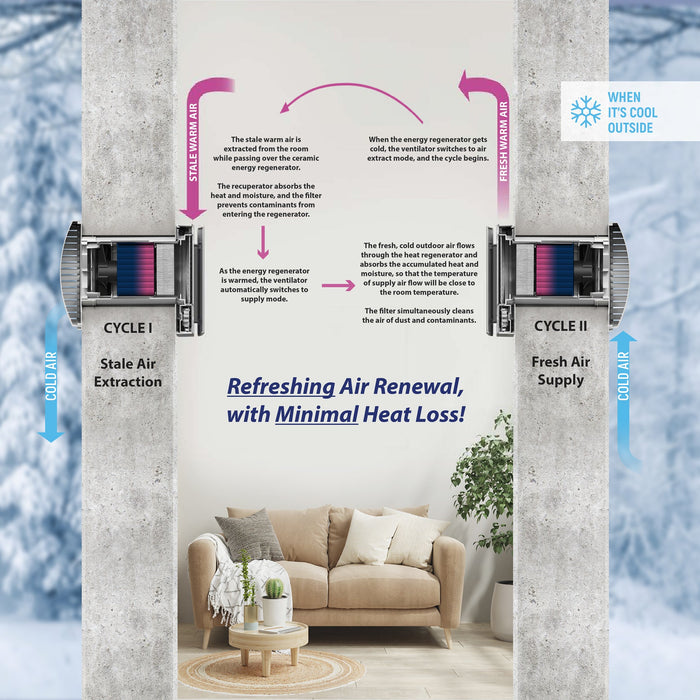

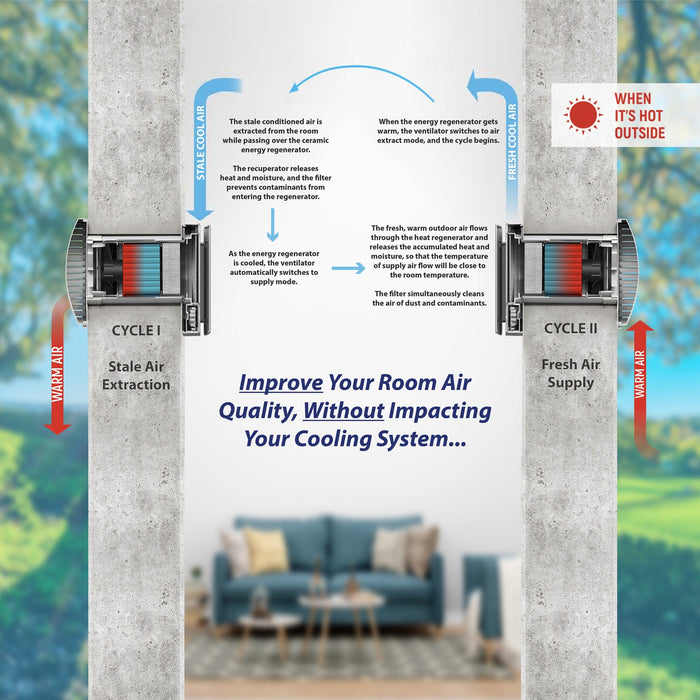

Minimize Strain on the Home Heating or Cooling System: By cooling the incoming hot outside air in summertime, and heating the incoming cold outside air in wintertime, the system intelligently prevents a change in indoor air temperature by using that outgoing stale indoor air to preheat or precool the incoming outdoor air depending on the season (Recommended to install two 50 Series ERVs to take advantage of this benefit)
-
Continuously Monitor Air Quality: A built-in CO2 sensor allows automated management of oxygen & CO2 levels inside the room to maximize breathability
Why Choose the Pioneer® ECOasis 50 ERV?
- Improve indoor air quality instantly
- Reduce humidity and prevent mold growth
- Lower heating and cooling costs
- Ideal for modern airtight homes
- Perfect for residential and light commercial use
Whether you're upgrading your home ventilation system or looking for a compact ERV solution, the ECOasis 50 delivers unmatched performance, convenience, and energy savings.
Perfect For:
- Bedrooms & living rooms
- Apartments & condos
- Home offices
- Renovation & retrofit projects
- Energy-efficient homes
Product Specifications
- Power Supply: 110 ~ 240 VAC (50~60 Hz) with Plug-In Power Cord

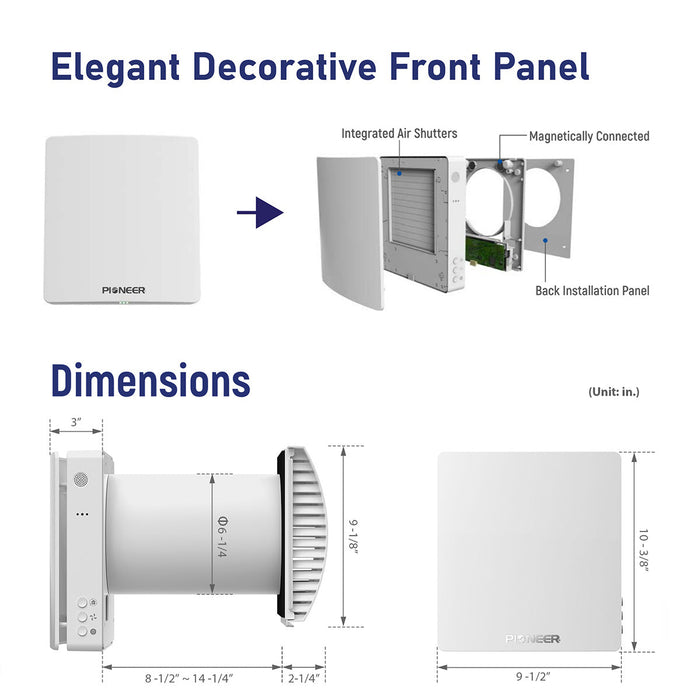

- Dimensions (WDH): 9-3/8" x 19-3/8" x 10-3/8"
- Airflow w/ F7 Filter (Lo/Med/Hi/Max): 11.8 / 23.5 / 29.4 / 35.3 CFM
- In-Wall Channel Span: 8-1/2" ~ 14-1/8"
- Method of Control: Onboard Interface, Handheld Remote, Smartphone App
- Product Weight: 11 lbs
- Input Power (Lo/Med/Hi): 6 / 7 / 8 W
- Water-Resistance Rating: IPX4
- Diameter of Air Duct: 6-1/4"
- Suggested Room Size Per Unit: Up to 300 Sq.Ft.
- Ambient Temperature Operating Range: -4°F - 122°F
Upgrade Your Air Quality Today
Don’t settle for stale, polluted indoor air. Invest in the Pioneer® ECOasis 50 Wi-Fi Energy Recovery Ventilator and experience cleaner air, improved comfort, and energy savings—every single day. Enjoy smarter ventilation with cutting-edge ERV technology!
