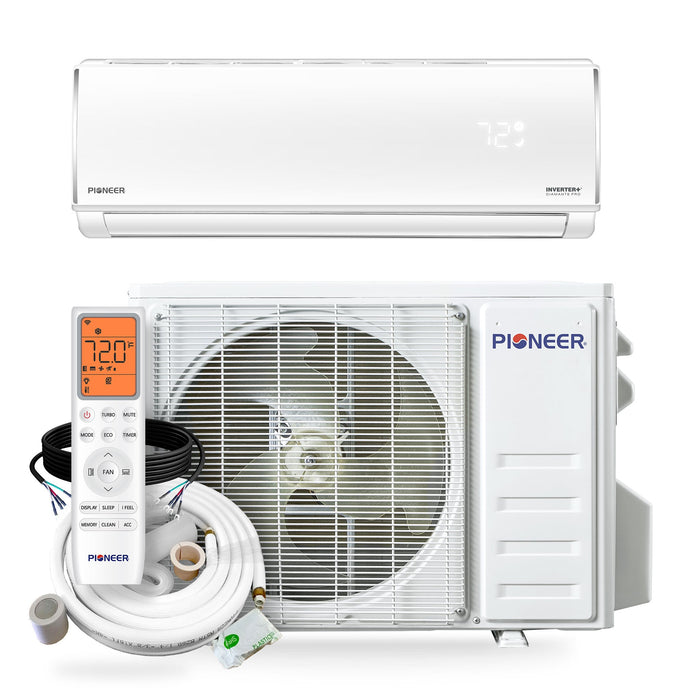

Pioneer® Diamante Pro™ 12,000 BTU 20 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Installation Kit
Upgrade your home comfort with the Pioneer® Diamante Pro™ 12,000 BTU Mini-Split Air Conditioner & Heat Pump—a powerful, energy-efficient, and ultra-quiet ductless solution designed for year-round climate control. Engineered with advanced inverter technology and an impressive 20 SEER2 rating, this high-performance mini-split system delivers fast cooling, reliable heating, and lower energy bills—making it the perfect choice for homeowners seeking premium comfort without the high operating costs.

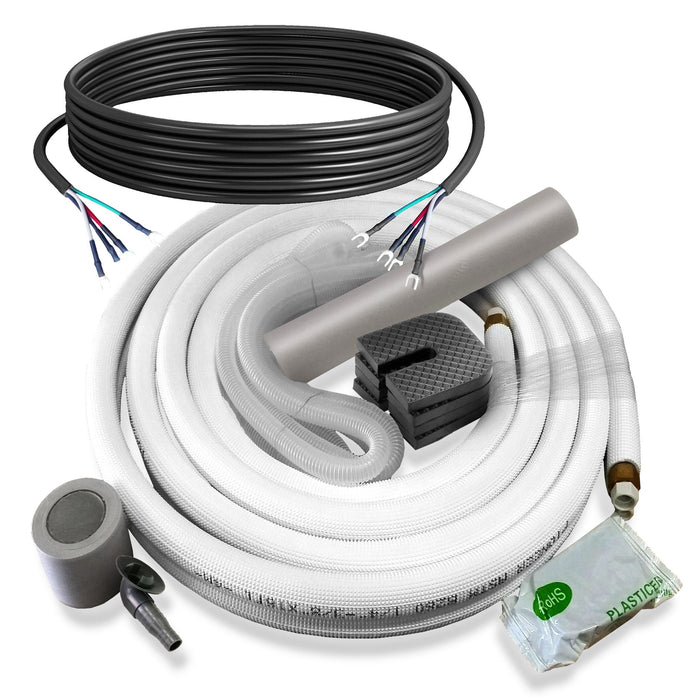

Whether you're cooling a bedroom, home office, garage, or small living space, this 12,000 BTU ductless AC unit provides precise temperature control, whisper-quiet operation, and easy installation with the included 16 ft. kit.
Summary at a Glance
High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
High Wall-Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Key Features
High Efficiency Performance (20 SEER2)
Save more on energy costs with one of the most efficient mini-split systems in its class—ideal for eco-conscious buyers and cost savings.
12,000 BTU Cooling & Heating Capacity
Perfect for spaces up to ~450–550 sq. ft., delivering powerful cooling in summer and dependable heating in winter.
Advanced Inverter Heat Pump Technology
Maintains consistent indoor temperatures while reducing energy consumption and extending system lifespan.
115V Power Supply – Easy Installation
Designed for standard electrical setups, making it a convenient choice for residential applications without requiring complex wiring.
Ultra-Quiet Operation
Enjoy a peaceful environment with low indoor noise levels—perfect for bedrooms, offices, and living areas.
Smart Remote Control & Multiple Modes
Features cooling, heating, dehumidification, fan-only, and sleep modes for total comfort customization.

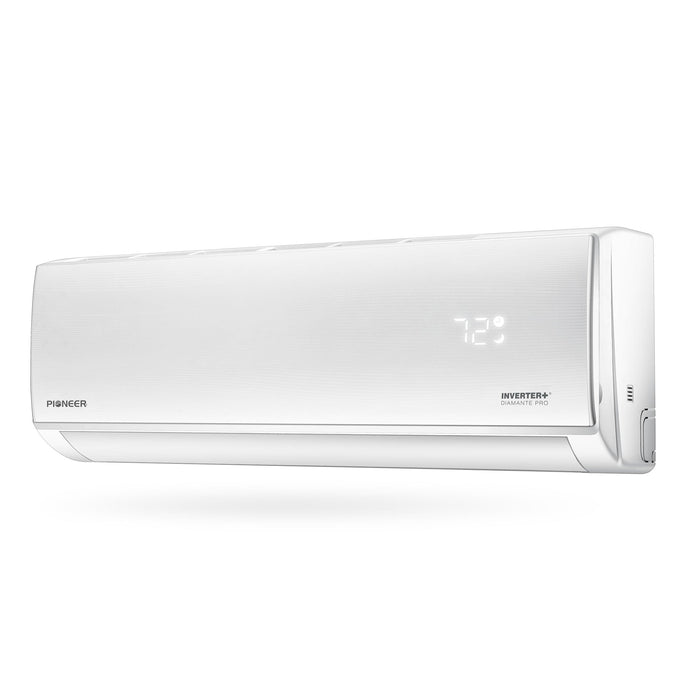

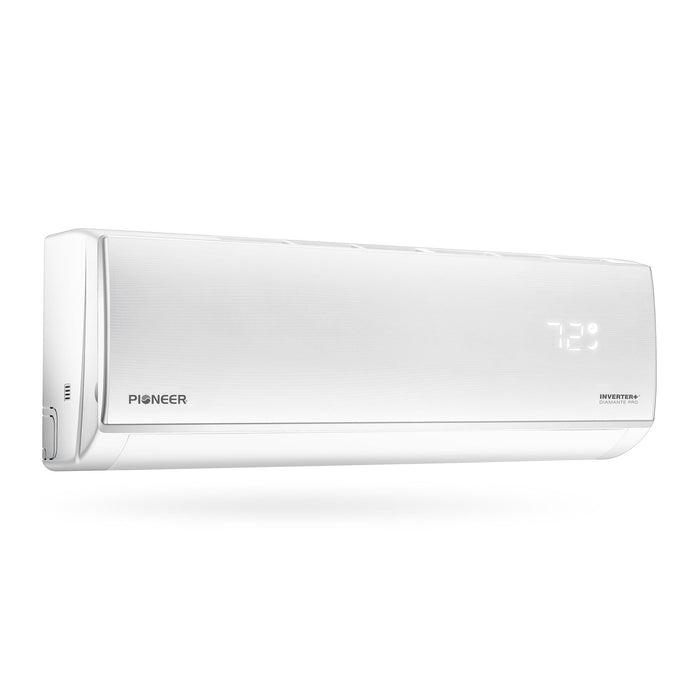

Modern High-Wall Design
Sleek, compact indoor units blend seamlessly into any home décor.
Why Choose This Pioneer Diamante Pro Mini-Split?
If you're searching for a high-efficiency mini-split air conditioner, this system offers the perfect balance of performance, affordability, and durability. Compared to traditional HVAC systems, this ductless unit eliminates energy losses from ductwork, giving you better efficiency and faster temperature control.
Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

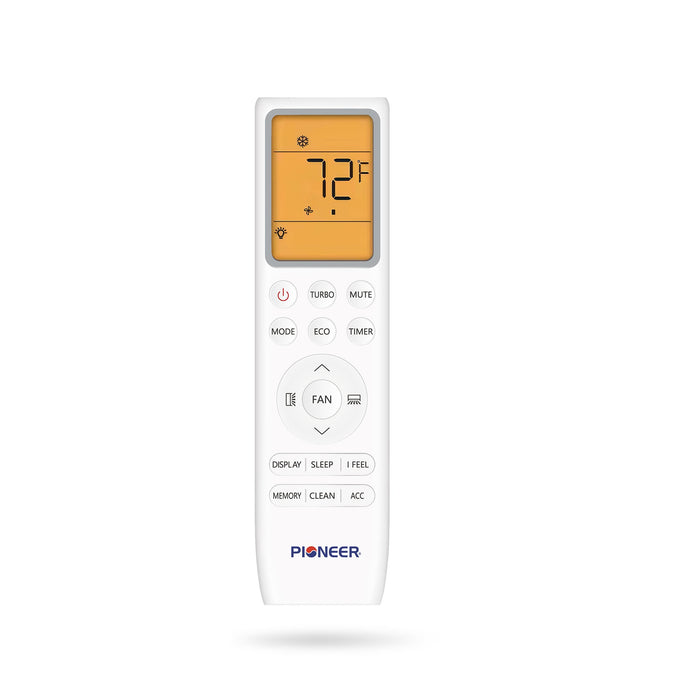

Functional Remote with:
ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature
Ideal for:
Homeowners upgrading from window AC units
Room additions, apartments, and condos
Garages, studios, and small commercial spaces
Energy-conscious buyers looking for low-cost heating and cooling solutions
Product Dimensions (WDH): 31"-7/8 x 8" x 11"-1/2 Inches
Carton Dimensions (WDH): 34"-7/8 x 10"-3/4 x 14"-3/8 Inches
Net / Gross Weight: 19.8 / 26.5 lbs

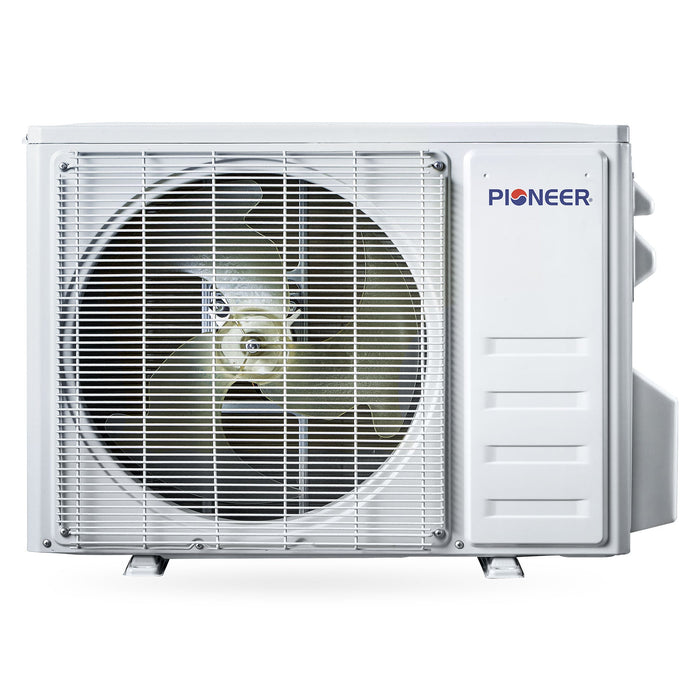

Outdoor Unit
Part Number: YN012ALSI20RPF
Breaker Needed: 25A (single-pole)
Sound Level: 55 dB(A)
Net Dimensions (WDH): 31" x 11"-1/2 x 19"-3/8 Inches
Carton Dimensions (WDH): 33" x 13"-3/8 x 22"-3/4 Inches
Net / Gross Weight: 55.1 / 66.1 lbs
Buy with Confidence
The Pioneer® Diamante Pro™ 12,000 BTU 20 SEER2 Mini-Split is built for long-lasting performance, energy savings, and superior comfort. Whether you're upgrading your home HVAC system or installing a new ductless AC, this unit delivers professional-grade results at an unbeatable value. Enjoy fast, efficient cooling & heating all year round!
