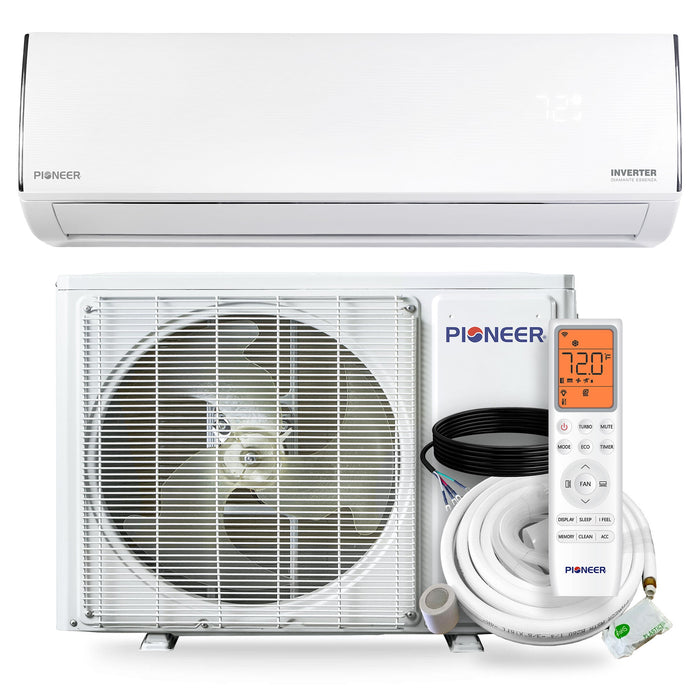

Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V Ductless Mini-Split Inverter Heat Pump (16 Ft. Kit)

Upgrade your home or commercial space with the powerful, energy-efficient cooling and heating solution you’ve been searching for. The Pioneer® Diamante Essenza™ 35,000 BTU Mini-Split Air Conditioner is engineered for large rooms, open spaces, offices, and light commercial applications, delivering reliable year-round comfort with advanced inverter technology.

Whether you're ready to buy a high-performance ductless AC system online or need a cost-effective HVAC upgrade, this system offers unbeatable value, efficiency, and convenience.

Summary at a Glance

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

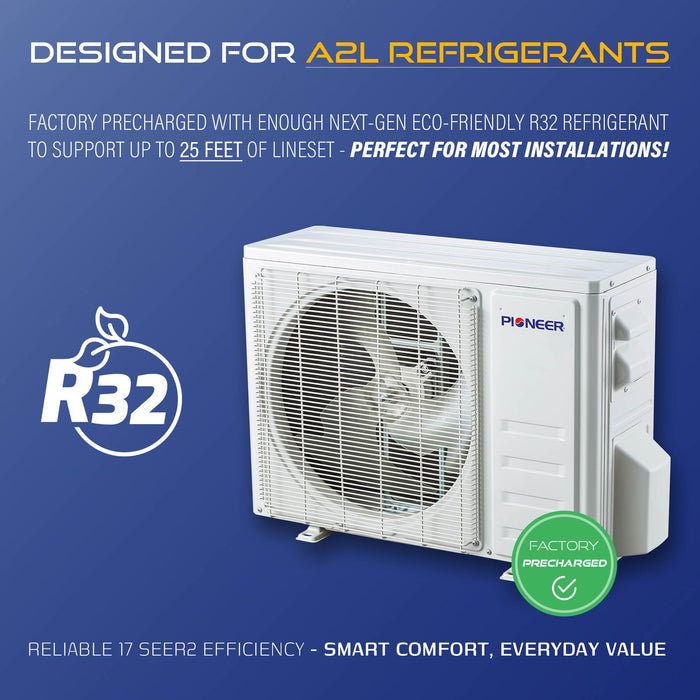

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Why Buy the Pioneer Diamante Essenza 35,000 BTU Mini Split?

High-Capacity Cooling & Heating (35,000 BTU)

Perfect for large living areas, open floor plans, offices, and retail spaces, ensuring fast and consistent temperature control.

Energy-Efficient 17 SEER2 Rating

Save on electricity bills with high-efficiency inverter technology that adjusts output based on demand—ideal for long-term savings.

All-Season Comfort – Heat Pump System

Enjoy both cooling in summer and heating in winter, making this a complete climate control solution.

Ductless Installation = Lower Costs

No ductwork required—reduce installation time and costs while improving energy efficiency.

230V Power for Strong Performance

Built for high-demand environments, delivering stable and powerful operation.

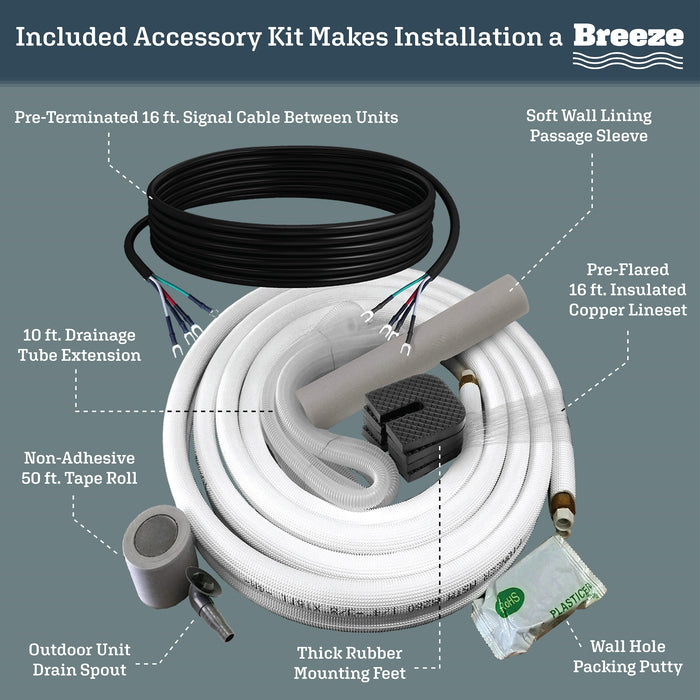

Includes 16 Ft. Installation Kit

Everything you need for setup is included—perfect for DIY installation or professional HVAC setup.

Key Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 35,000 BTU/h
  • Cooling Capacity Range: 7,500~36,000 BTU/h
  • Cooling SEER2: 17.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 35,400 BTU/h
  • Heating Capacity Range: 7,500~36,000 BTU/h
  • Heating HSPF2 (Region IV/V): 8.5 / 7.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
  • Refrigerant Type: R-32
  • Recommended Room Size: 1,000~1,400 sq ft
  • Minimum Room Size: 63 sq ft
  • Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048738

• Indoor Unit

  • Part Number: WT036GLUI17HLD
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
  • Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
  • Carton Dimensions (WDH): 49"-5/8 x 12"-7/8 x 16"-7/8 Inches
  • Net / Gross Weight: 38.6 / 46.3 lbs

• Outdoor Unit

  • Part Number: YN036GLUI17RPD
  • Breaker Needed: 35A (double-pole)
  • Sound Level: 63 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 32"-7/8 Inches
  • Net / Gross Weight: 105.8 / 120.2 lbs

Perfect For:

• Large homes & open-concept living spaces
• Offices, shops, and commercial areas
• Garages, warehouses, and studios
• Property owners seeking energy-efficient HVAC systems
• Buyers looking for best ductless mini split deals online

Ready to Upgrade Your Comfort?

Don’t settle for outdated HVAC systems. Buy the Pioneer Diamante Essenza 35,000 BTU Mini Split today and experience powerful, energy-efficient climate control designed for modern living.

Dimension Chart
