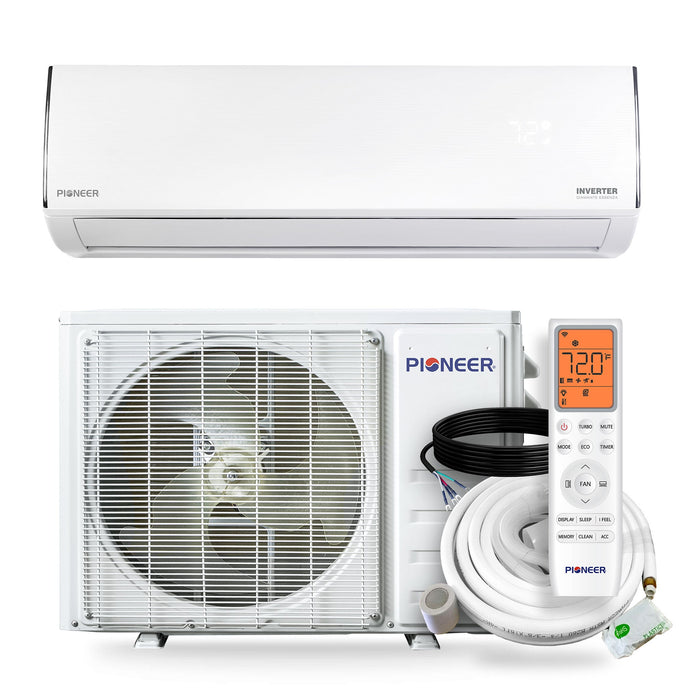

Pioneer Diamante Essenza 23,000 BTU 17 SEER2 Mini Split AC Heat Pump – 230V Ductless Inverter Air Conditioner with 16 Ft Installation Kit

Upgrade your home comfort with the Pioneer Diamante Essenza 23,000 BTU Mini Split Air Conditioner Heat Pump, engineered for powerful performance, energy efficiency, and whisper-quiet operation. Designed for medium to large spaces, this high-wall ductless inverter system delivers year-round climate control—cooling in summer and heating in winter—while reducing your energy bills.

Whether you're looking to buy a ductless mini split AC, replace an outdated HVAC system, or install efficient climate control without ductwork, this system is a top-rated solution trusted by homeowners and professionals alike.

Summary at a Glance

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph

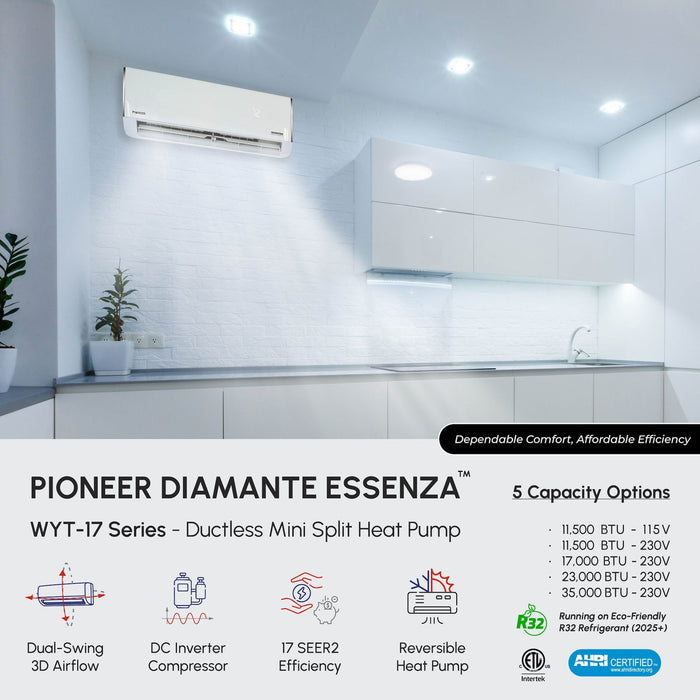

• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

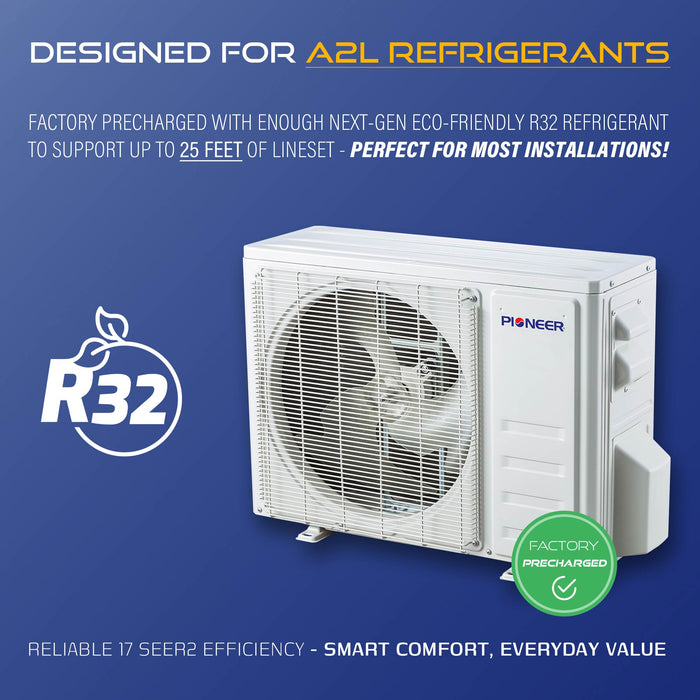

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Powerful Cooling & Heating Performance

• 23,000 BTU capacity ideal for large rooms, offices, or open living spaces
• Advanced inverter heat pump technology for both cooling and heating
• Maintains consistent indoor temperatures with minimal energy waste

Energy-Efficient Savings

• 17 SEER2 rating for improved efficiency and lower utility costs
• Eco-friendly design helps reduce your carbon footprint
• Smart inverter adjusts power usage based on demand

Ultra-Quiet Operation

• Enjoy whisper-quiet performance, perfect for bedrooms, living rooms, or workspaces
• Designed for comfort without disruptive noise

Easy Installation Kit Included

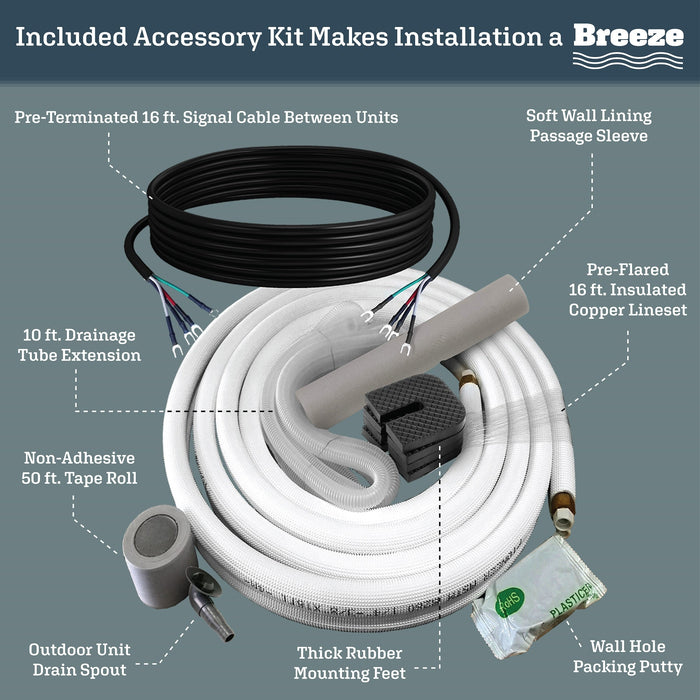

• Comes with a 16 ft installation kit for faster, hassle-free setup
• Ideal for DIY installation or professional HVAC technicians

Smart & Convenient Control

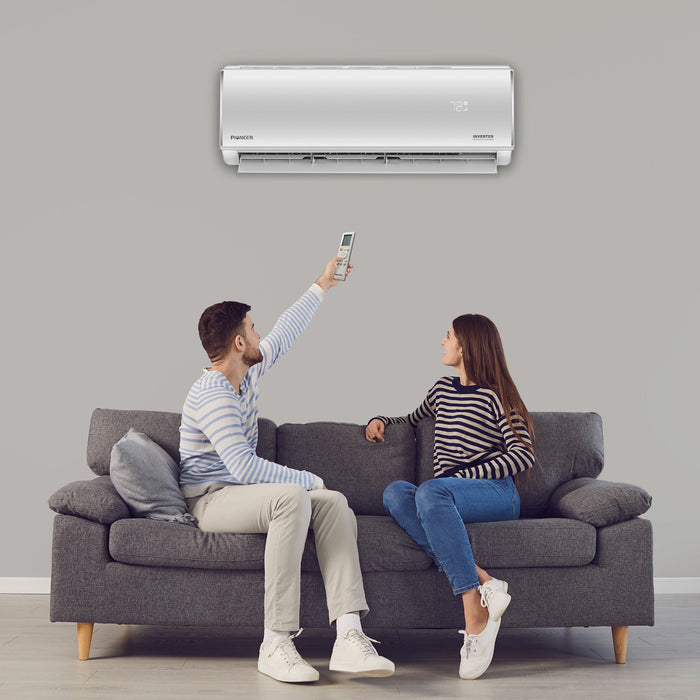

• Wireless remote control included
• Optional smart controls for enhanced convenience (depending on setup)

Why Buy the Pioneer Diamante Essenza Mini Split?

• Best-selling ductless air conditioner with heat pump
• Perfect for homes without central HVAC systems
• Reliable performance from a trusted brand
• Great for residential and light commercial use
• Competitive price for premium features
• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters

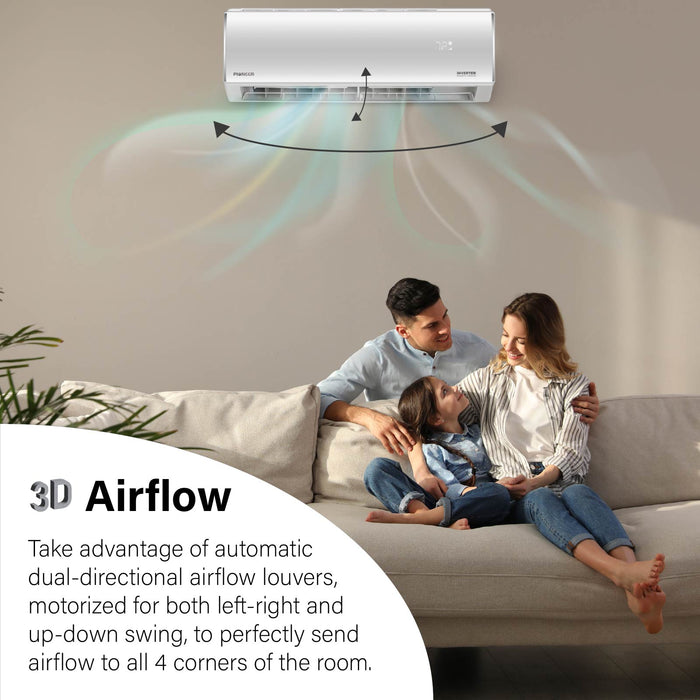

• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h
  • Cooling Capacity Range: 5,120~24,500 BTU/h
  • Cooling SEER2: 17.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 22,400 BTU/h
  • Heating Capacity Range: 5,120~24,500 BTU/h
  • Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
  • Refrigerant Type: R-32
  • Recommended Room Size: 750~1,000 sq ft
  • Minimum Room Size: 41 sq ft
  • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048737

• Indoor Unit

  • Part Number: WT024GLUI17HLD
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
  • Product Dimensions (WDH): 39"-3/4 x 8"-3/4 x 12"-3/8 Inches
  • Carton Dimensions (WDH): 43"-1/8 x 11"-3/4 x 15"-3/8 Inches
  • Net / Gross Weight: 26.5 / 33.1 lbs

• Outdoor Unit

  • Part Number: YN024GLUI17RPD
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 56 dB(A)
  • Net Dimensions (WDH): 34" x 13"-3/4 x 23"-5/8 Inches
  • Carton Dimensions (WDH): 35"-1/2 x 15"-7/8 x 26"-7/8 Inches
  • Net / Gross Weight: 70.5 / 82.7 lbs

Ideal For:

• Living rooms, bedrooms, apartments
• Offices, shops, and small commercial spaces
• Homes requiring energy-efficient cooling and heating solutions

Experience Year-Round Comfort

Don’t settle for inefficient cooling systems—order your Pioneer Diamante Essenza 23,000 BTU Mini Split today and enjoy powerful, energy-saving comfort all year long. Limited stock available—shop now and upgrade your space instantly!

Dimension Chart
