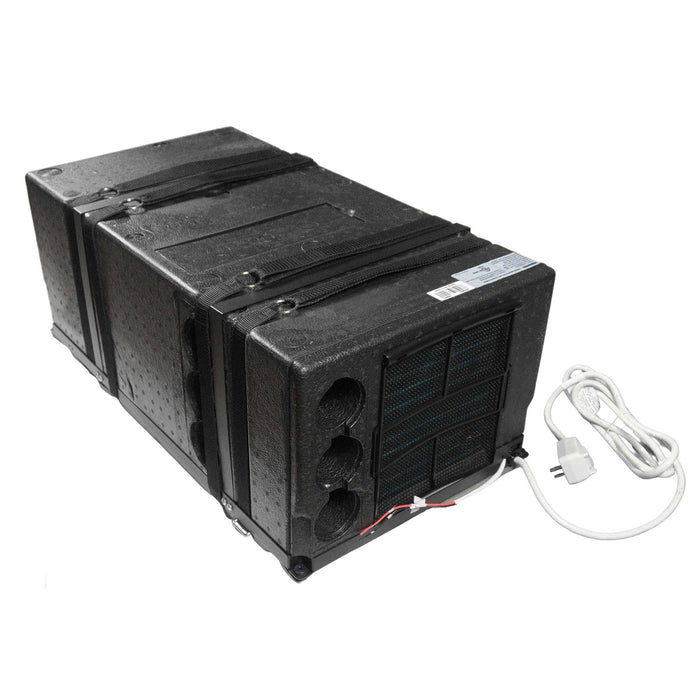

Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner
Upgrade your RV comfort with the Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner—a compact, high-performance climate control solution engineered for modern mobile living. Designed to fit seamlessly under benches or in tight storage compartments, this all-in-one RV air conditioner and heat pump system delivers powerful cooling and efficient heating in one sleek, space-saving unit.
Whether you're camping off-grid or parked at a full-service site, this energy-efficient inverter RV AC unit ensures consistent indoor comfort while minimizing power consumption—perfect for RV owners who demand performance, reliability, and quiet operation.

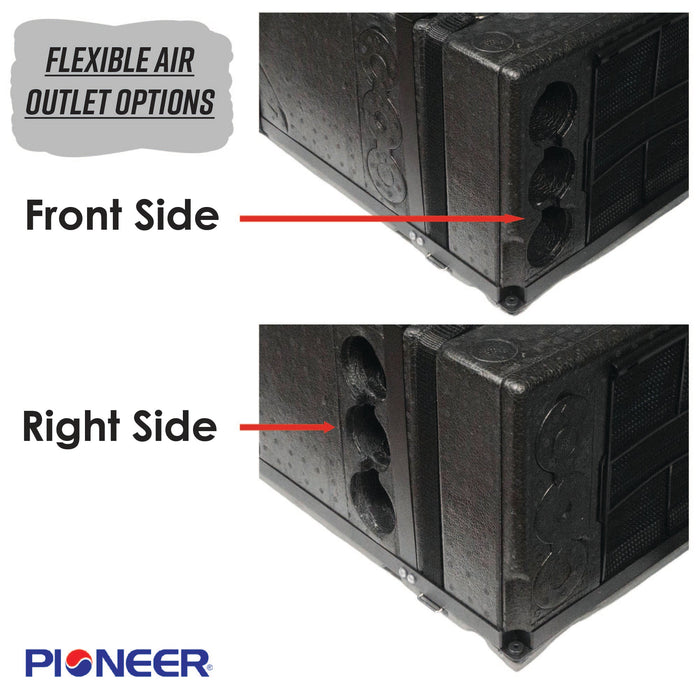

Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit. Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, and do so quietly. Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system. Control the system using the wall-fixed thermostat, or from the comfort of your bed using the convenient handheld remote controller. With ultra-quiet performance, sleek design, and very low input power requirements, this rugged plug-in system will be one of your favorite companions on those long-haul journeys, day-in and day-out.
Summary at a Glance
- Cooling capacity: 10,000 BTU/H with 10.1 EER efficiency
- Heating capacity: 9,500 BTU/H with 3.5 C.O.P.
- Voltage: 110~120V, 60Hz, 1Ph
- Operational Temperature Range: 19 - 104°F
- Pre-charged with R32 refrigerant and ready to install
- UL Listed
- Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels
Key Features & Benefits
10,000 BTU Cooling & Heating Power
Stay cool in the summer and warm in the winter with a versatile RV heat pump air conditioner designed for year-round comfort.
115V Plug-and-Play Convenience
No complicated wiring required—this 115V RV AC unit is compatible with standard electrical setups, making installation fast and hassle-free.
Compact Under-Bench Design
Maximize your living space with a low-profile, under-bench packaged system—ideal for vans, campers, trailers, and motorhomes.
Advanced Inverter Technology
Enjoy ultra-quiet operation, precise temperature control, and superior energy efficiency with cutting-edge inverter performance.
All-in-One Packaged System
No need for separate indoor and outdoor units—this self-contained RV air conditioner simplifies installation and maintenance.
Quiet & Comfortable Operation
Designed for peaceful travel and restful sleep, this low-noise RV AC system operates smoothly without disruptive sound.
Perfect For
- Camper vans & van life conversions
- Travel trailers & fifth wheels
- Motorhomes & RVs
- Tiny homes & mobile living spaces
Why Choose This Pioneer RV AC Unit?
- High-efficiency inverter compressor saves energy
- Space-saving under-bench installation
- Reliable heating & cooling in one system
- Ideal for off-grid and on-grid setups
- Built for durability and long-term performance
Our Guarantee
- 3 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 10,000 BTU/h
- Cooling EER: 10.1 BTU/w.hr
- Maximum Cooling Consumption: 8.6A / 989W
- Heating Rated Capacity: 9,500 BTU/h
- Heating C.O.P.: 3.51 W/W
- Maximum Heating Consumption: 6.9A / 794W
- Refrigerant Type: R32
- Suitable Volume: 1,060 m3
- Fan Speeds: 3 (Low/Med/High)
Unit Physical Data
- Treated Volume of Air (Max): 206 CFM
- Water Protection Class: IPX-5
- Noise Level: <40 dB(A)
- Weight: 61 lbs

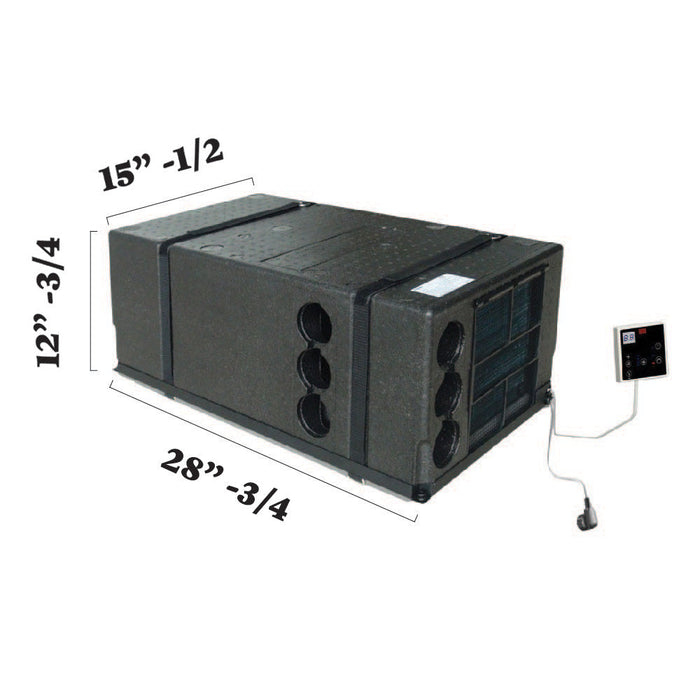

- Dimensions (LDH): 28"-7/8 x 16" x 11"-5/8
What's Included
- Pioneer RV Under-Bench Heat Pump AC System

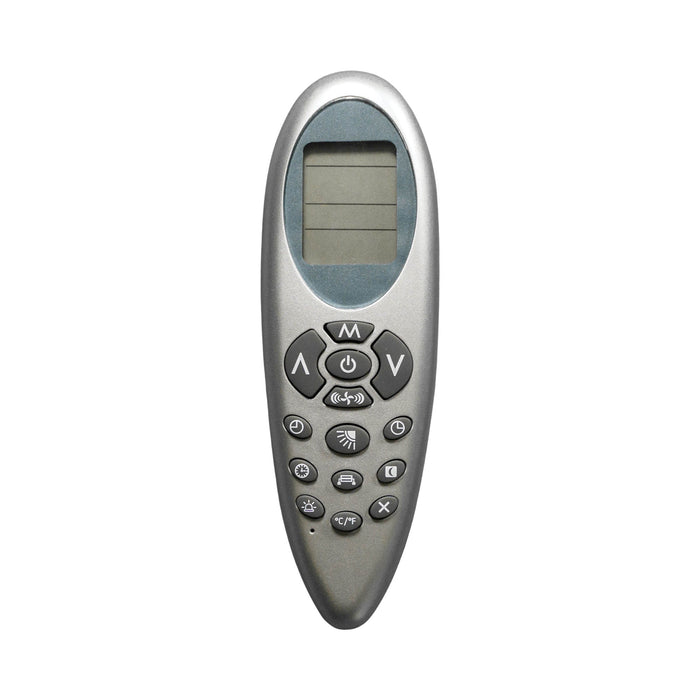

- Handheld Remote Controller w/ batteries and cradle

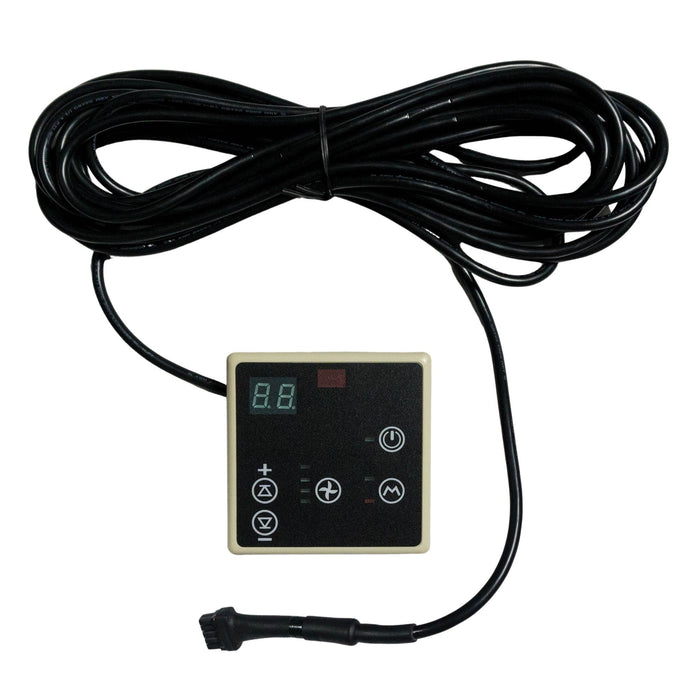

- Wired Thermostat w/ cradle

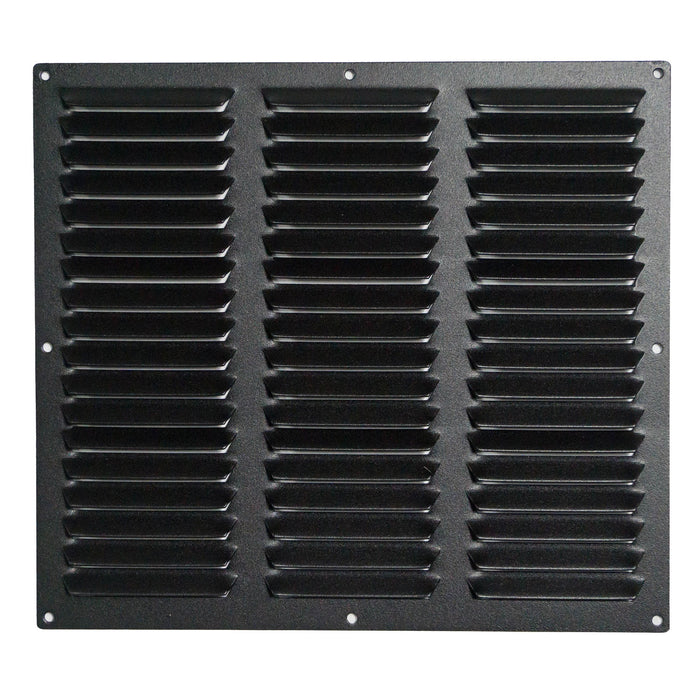

- Highly Durable Metallic Return Air Grille
- Drainage Tubing
- Installation Hardware
- Installation and User's Manual
Buy with Confidence
If you're looking for the best RV air conditioner with heat pump, the Pioneer® 10,000 BTU Under-Bench Inverter System delivers unbeatable value, performance, and convenience. Upgrade your RV today and experience premium climate control on the road.

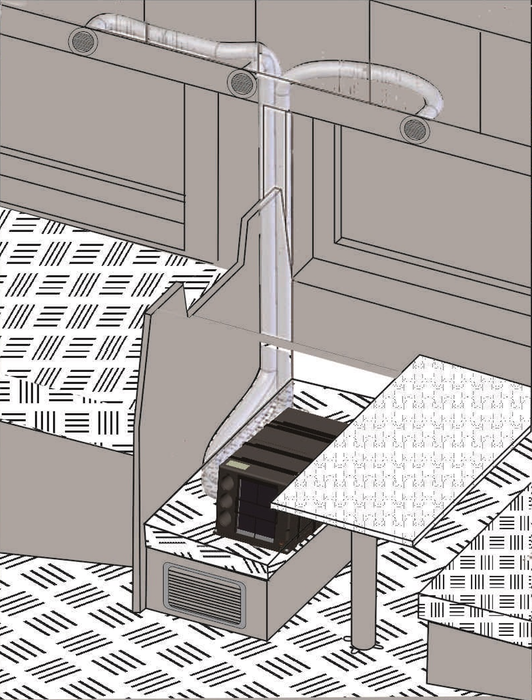

Typical Installation
Product Documentation
