Pioneer® Quantum Ultra™ 9,500 BTU 23 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Inverter Heat Pump – Full System

Upgrade your comfort with the Pioneer® Quantum Ultra™ 9,500 BTU Ceiling Cassette Mini-Split System—a premium, energy-efficient solution designed for modern homes, offices, retail spaces, and commercial environments. Featuring advanced inverter heat pump technology, ultra-quiet operation, and a sleek 8-way airflow ceiling cassette design, this system delivers powerful, evenly distributed cooling and heating year-round.

Perfect for buyers searching for a high-efficiency ductless air conditioner, this full set includes everything needed for installation, making it an ideal choice for contractors, HVAC professionals, and DIY enthusiasts looking for a complete mini-split system deal.

Summary at a Glance

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10.5 HSPF2 / 3.8 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Key Features & Benefits

Powerful Cooling & Heating Performance

• 9,500 BTU capacity ideal for small to medium-sized rooms
• Year-round comfort with cooling and heating heat pump functionality
• Fast temperature control with advanced inverter compressor technology

Energy-Efficient & Cost-Saving

• Up to 23 SEER2 rating for maximum energy savings
• Lower electricity bills compared to traditional HVAC systems
• Eco-friendly performance with reduced carbon footprint

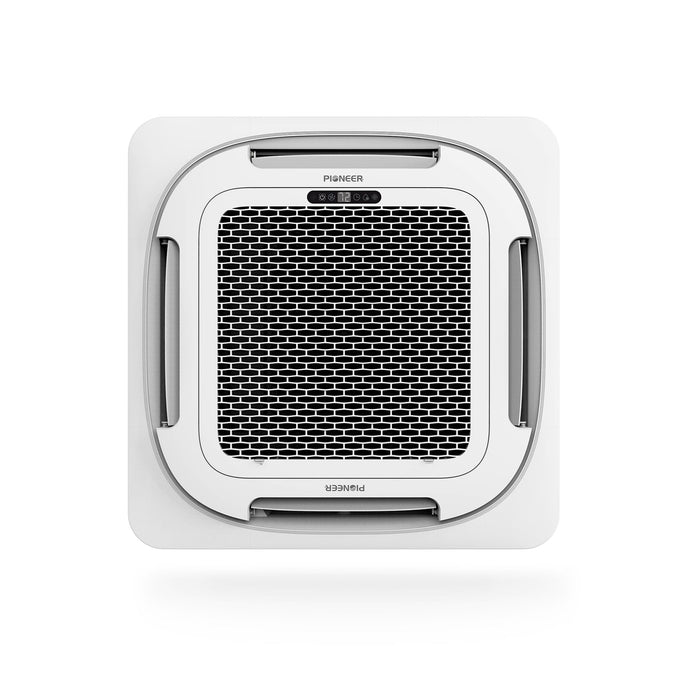

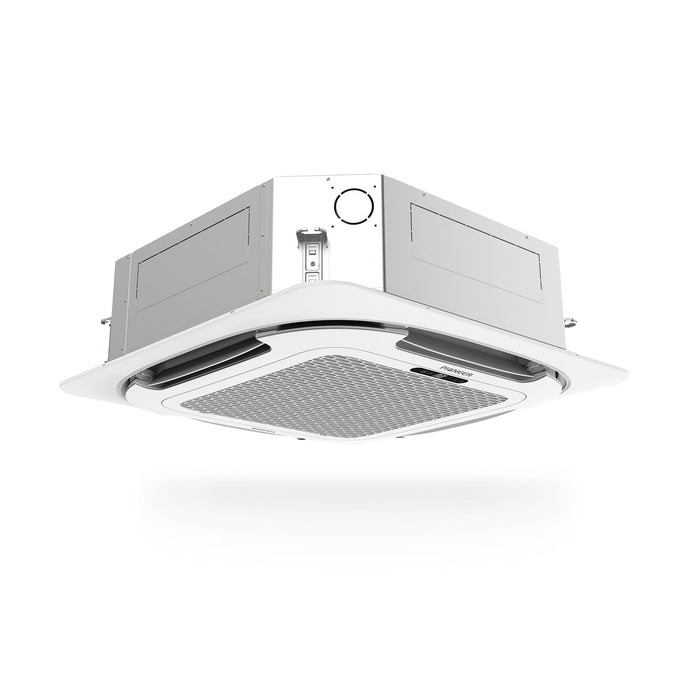

8-Way Airflow Ceiling Cassette Design

• Uniform air distribution in all directions
• Eliminates hot and cold spots for consistent comfort
• Discreet, flush-mounted installation for modern interiors

Ultra-Quiet Operation

• Whisper-quiet indoor performance—perfect for bedrooms, offices, and conference rooms
• Noise-reduction engineering for uninterrupted comfort

Smart Control & Convenience

• Remote control included for easy operation
• Compatible with smart controllers (optional upgrade)
• Programmable settings for optimized energy use

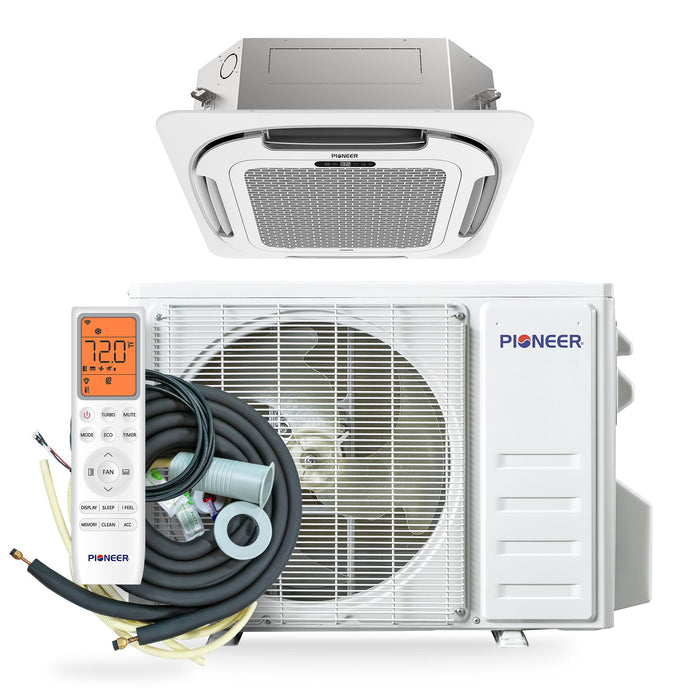

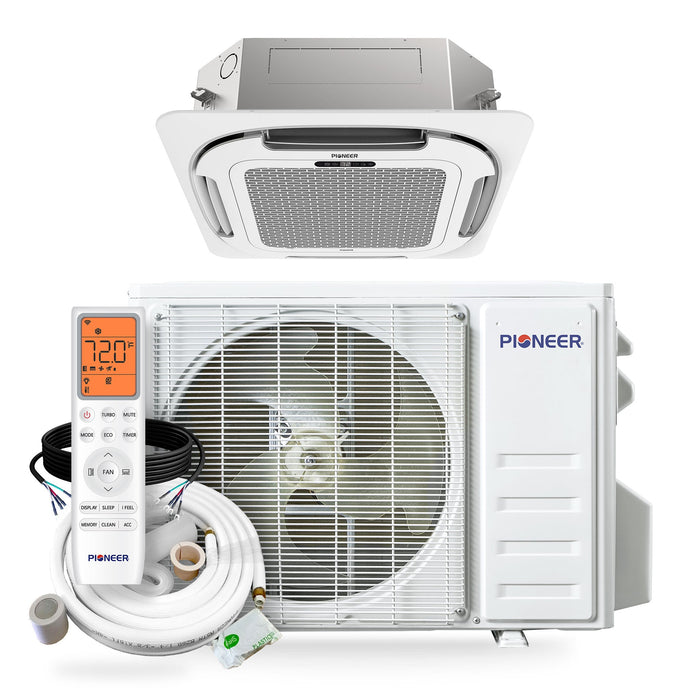

Complete Installation Kit Included

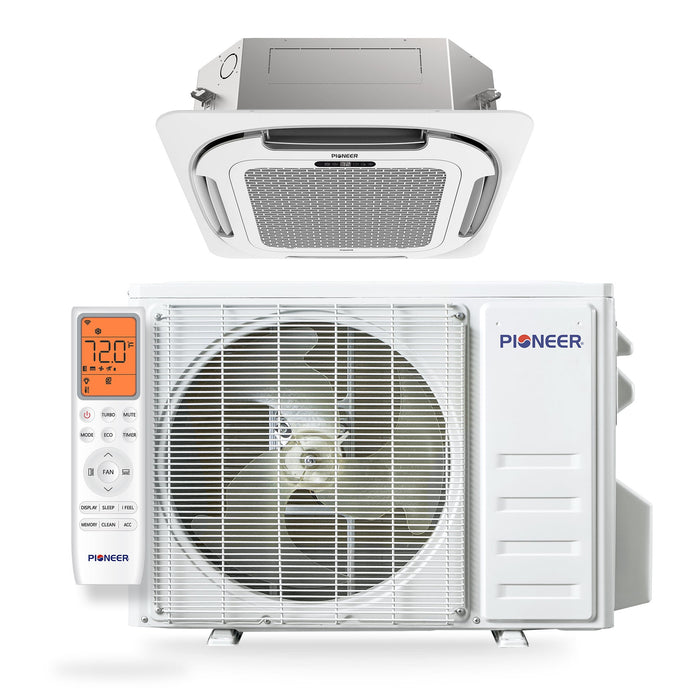

• Indoor ceiling cassette unit
• Outdoor condenser unit
• Pre-charged refrigerant system

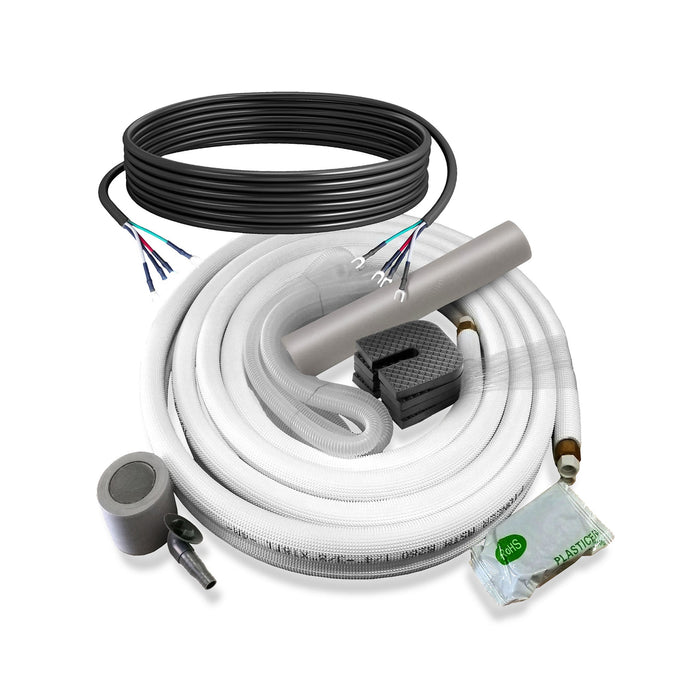

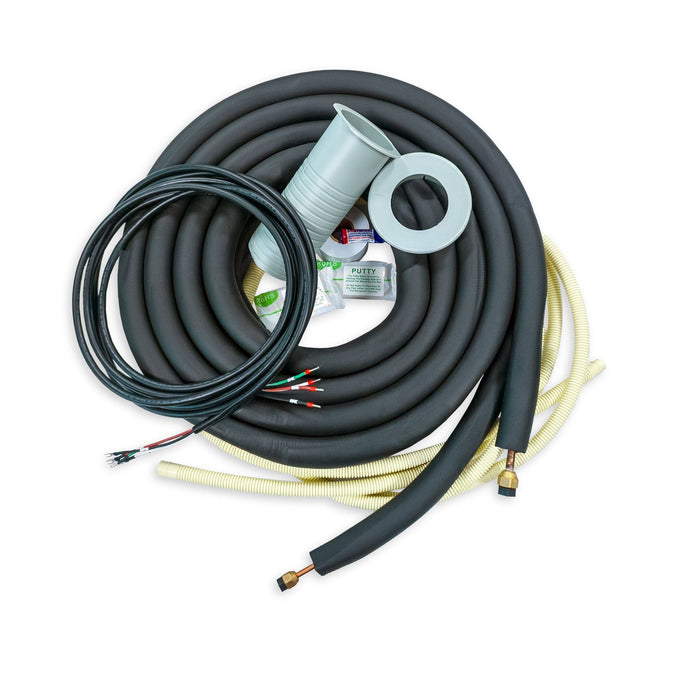

• Installation accessories (varies by package)

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,500 BTU/h
  • Heating HSPF2 (Region IV/V): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.8 / 1.95 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 250~350 sq ft
  • AHRI Reference: 217048758

• Indoor Unit

  • Part Number: CT009GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs

• Decorative Panel

  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

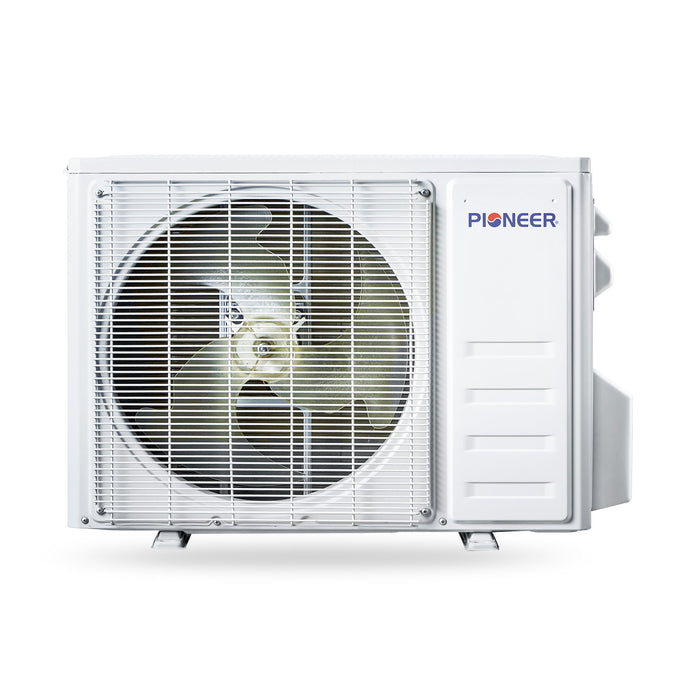

• Outdoor Unit

  • Part Number: YN009GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 50 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 52.7 / 57.1 lbs.

Why Choose This Pioneer Ceiling Cassette Mini-Split?

If you're looking to buy a high-efficiency mini-split ceiling cassette system online, this model offers unbeatable value with premium features, energy savings, and modern design. Its ductless installation reduces complexity while delivering professional-grade performance—making it one of the best ceiling cassette mini-split systems for sale today.

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

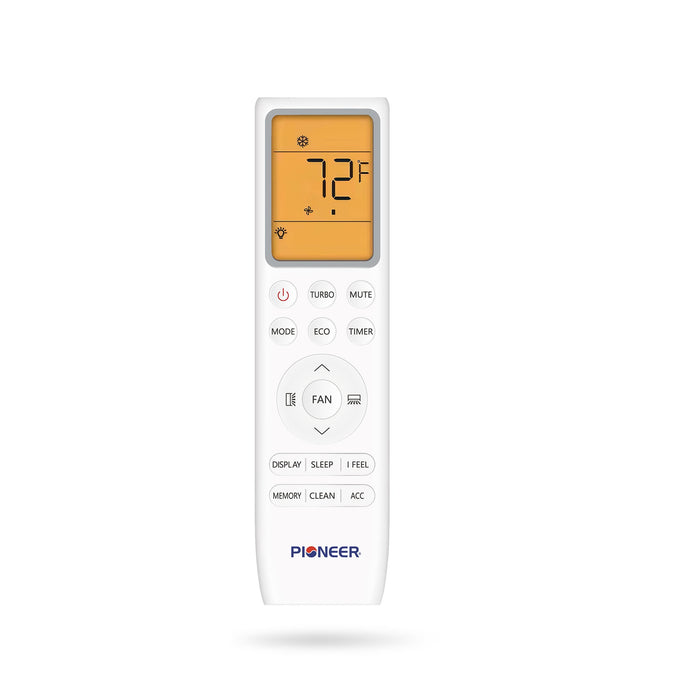

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Ideal For:

• Residential homes & apartments
• Offices & commercial spaces
• Retail shops & restaurants
• Renovations without existing ductwork

Experience Superior Comfort

Take advantage of this top-rated Pioneer mini-split heat pump system and enjoy fast shipping, competitive pricing, and reliable performance. Perfect for anyone ready to upgrade to an energy-efficient ductless AC system.

Dimension Chart
